Description

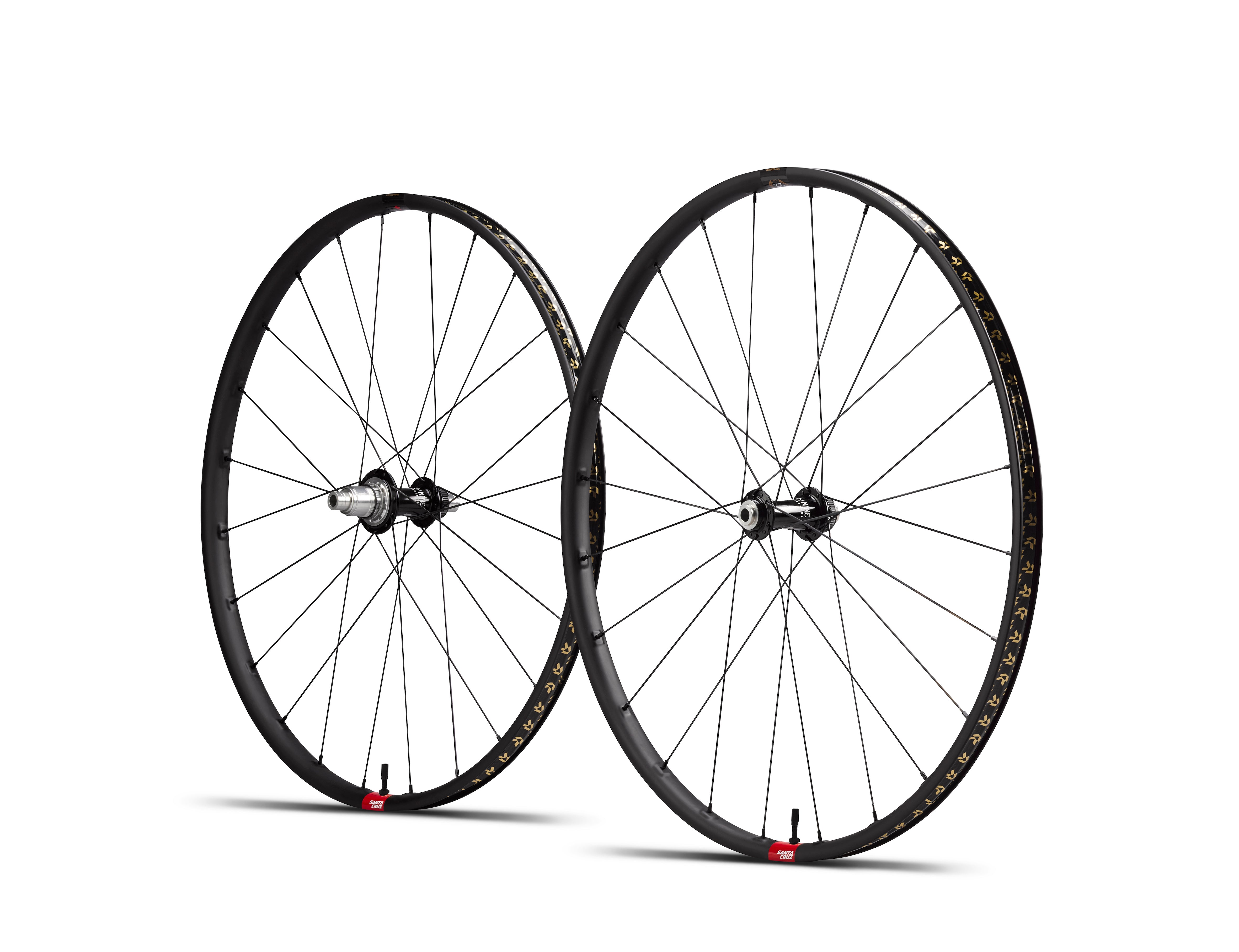

Enjoy the simple pleasures of getting off-road on your drop bar rig with the Reserve 22|GR. These premium carbon wheels are designed to handle anything you can throw at them, this gravel-specific rim provides compliance over harsh surfaces with the lateral stiffness to make every effort count. Capable of fitting tires up to 45c, the 22mm internal-width rim allows you to run a wide range of tires and tire pressure to provide unparalleled versatility.

See Full Specs

01 Spoke Reinforcements

02 Shaped Rim Bed

03 Asymmetrical Design

01Spoke Reinforcements02Shaped Rim Bed03Asymmetrical Design

Spoke Reinforcements

Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.

Shaped Rim Bed

The 22|GR's rim bed shape eases tubeless installation, utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.

Asymmetrical Design

Asymmetrical rims front and rear make for a stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.

Details

Designed For Gravel riding and racing
Wheelset Weight DT350 - 1,398g , Industry 9 Torch - 1379g , Single Rim - 364g
ERD 605mm
Inner Width 22mm
Depth 17mm
Recommended Tire Dimensions 30-45c
Spoke Count 24
Hub Spacing 100mm/142mm
Freehub Options XDR, HG-EV
Disc Style Option Centerlock

FAQ

What is the maximum pressure for your rims?

The maximum pressure for our road rims is 100 psi (6.9 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

The maximum pressure for our gravel rims is 80 psi (5.5 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

The maximum pressure for our mountain rims is 50 psi (3.4 bar), or if lower, the maximum pressure as listed by the tire manufacturer on the side of the tire.

This applies whether you are running a tubeless or tubed set up.

See more details on your exact rim model in our Tech Docs HERE.

Can you build me a wheelset if I send you my hubs? Do you sell rim-only?

We do not currently offer wheelbuilding services, but we do offer rim-only options so you can have your dream wheels built by an experienced wheelsmith.

Where can I find more tech spec information?

Click here for all our technical documents.

What's included in the box?

Wheelset:

Fillmore Valves

Rim Tape (installed)

User Manual

Rim Only:

Fillmore Valves

Rim Tape (uninstalled)

User Manual

Who is the manufacturer on record?

Santa Cruz Bicycles

Didn't see your question?

Click here for a full list of frequently asked questions.

Specific Title

This is an FAQ that is specific to the Reserve 22
